| Usage: | Air Filter | Type: | Filter Elements |
|---|---|---|---|
| Material: | Metal | Hole Shape: | Diamond |
| Filter Rating: | 99% | Thickness: | 200mm |
| Length: | 200mm~3000mm | Width: | 200mm~3000mm |

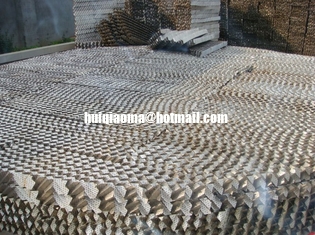

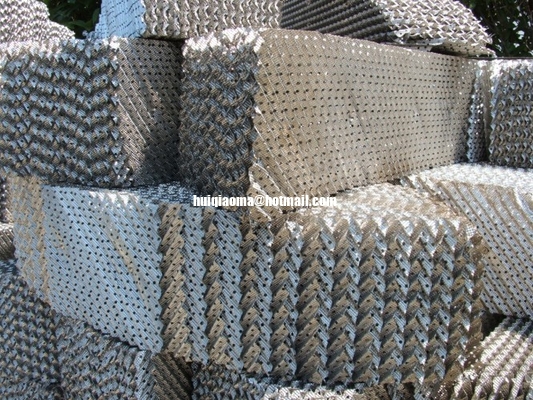

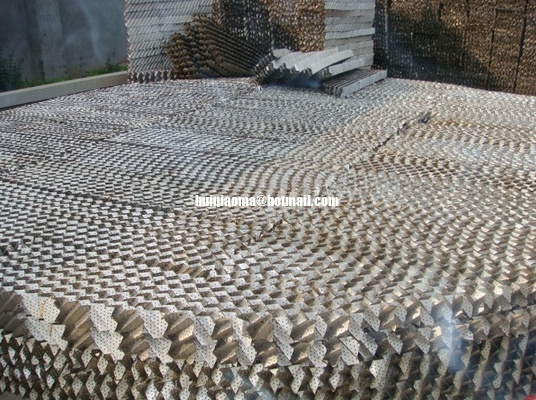

Sheet metal structured tower packing
Sheet metal structured tower packing you get greater surface area per cubic foot than random packings of equal capacity. A series of perforated vertical corrugated layers make up each sheet metal structured tower packing element. Gas/liquid is spread and distributed radially from layer to layer within the element. Surface texturing on the sheet metal further enhances wettability and mass transfer. Installed in opposing 90°-rotated sections, these sheet metal structured tower packing elements promote thorough mixing and even gas/liquid distribution across the radius of the tower. Wiper bands throughout the packing prevent fluid from migrating between the packing and vessel wall.
Sheet metal structured tower packing provides high capacity, wettability and low pressure drop in a number of distillation, absorption and liquid/liquid extraction applications including:
• Refinery columns (atmospheric and under vacuum)
• Petrochemical columns
• Natural gas glycol dehydration
• Wastewater treatment stripping columns
• Atmospheric pressure and high pressure columns
The Structured Packing is available in a wide range of alloys and with various specific surface areas. For availability and lead times consult the factory.
